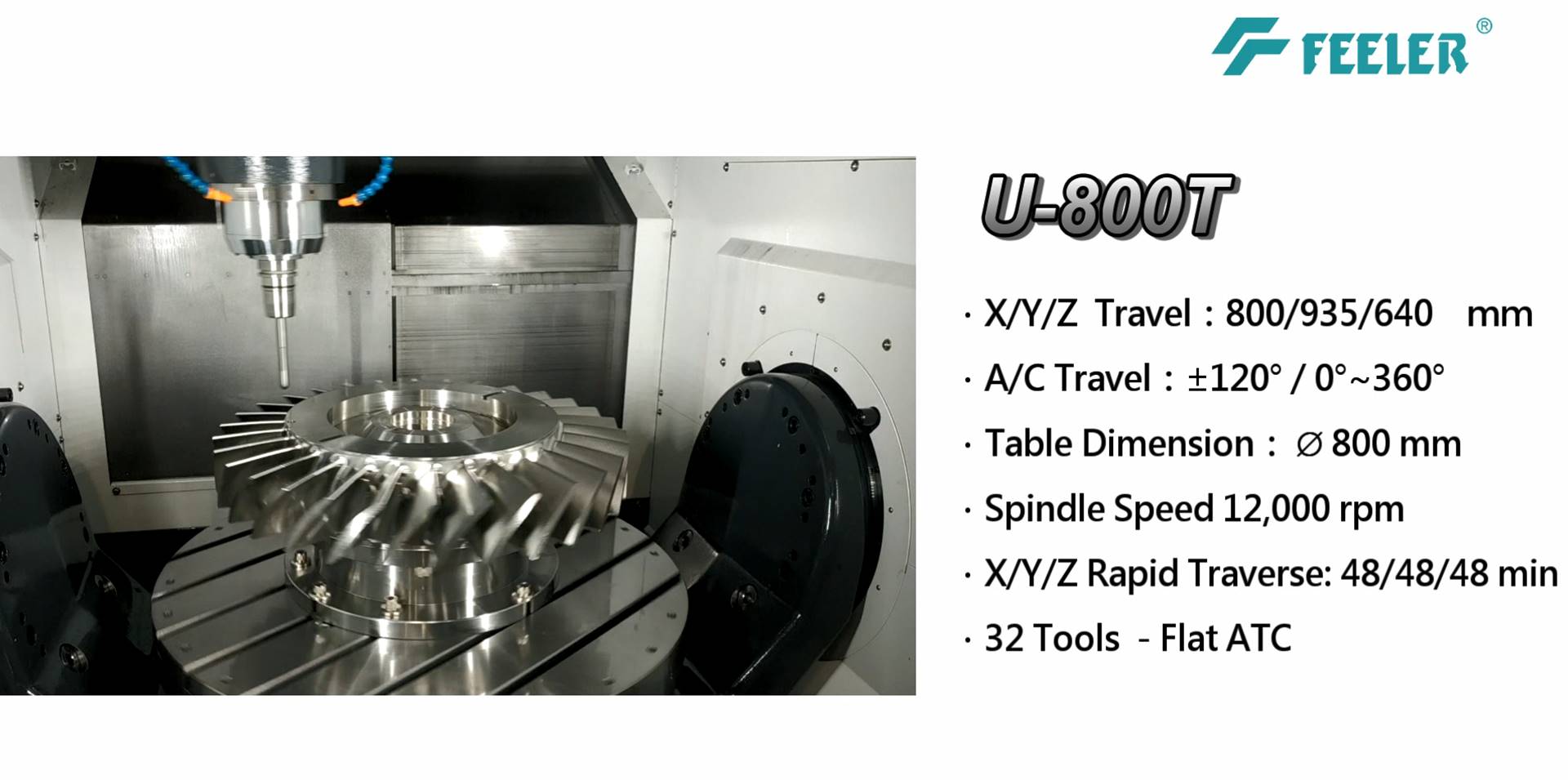

U-800T 5-Axis Vertical Machining Center
Product Description :
★Gantry type structure
- Designed with a gantry type structure, the Feeler U800-5AX 5-axis machining center has the feature of spacious machining space, allowing large workpiece to be loaded and unloaded with ease. It is also convenient for operator to check the current machining condition at any time.
★U-shaped construction of base and column
-The advanced U-Shape structure significantly increases structural rigidity and machining accuracy.
-X.Y.Z axis rapid traverse rate reach 48m/min.
- Suitable for equipping with a large diameter of rotary table.
★Three axes overlap and separated from two rotary axes
- This design avoids a distance between the machining point and the intersection point of two rotating axes.
- Easy to compensate for the errors of radius on rotating axes and movement on three linear axes to ensure the machine's stability and accuracy.
★Separated design for three axes moving area and machining area
- This design feature not only makes chip removal more convenient, but also enables better chip-prevention capability of the machine.
- The rotaary shaft speed is increased by 800 rpm, which makes the turntable have a high-speed turning function.
- Designed with a gantry type structure, the Feeler U800-5AX 5-axis machining center has the feature of spacious machining space, allowing large workpiece to be loaded and unloaded with ease. It is also convenient for operator to check the current machining condition at any time.
★U-shaped construction of base and column
-The advanced U-Shape structure significantly increases structural rigidity and machining accuracy.
-X.Y.Z axis rapid traverse rate reach 48m/min.
- Suitable for equipping with a large diameter of rotary table.
★Three axes overlap and separated from two rotary axes
- This design avoids a distance between the machining point and the intersection point of two rotating axes.
- Easy to compensate for the errors of radius on rotating axes and movement on three linear axes to ensure the machine's stability and accuracy.
★Separated design for three axes moving area and machining area
- This design feature not only makes chip removal more convenient, but also enables better chip-prevention capability of the machine.
- The rotaary shaft speed is increased by 800 rpm, which makes the turntable have a high-speed turning function.
FAIR FRIEND ENTERPRISE CO., LTD.
Brand Name：
FEELER
Booth Number :
J0617
Contact Information :
- www.feeler.com
- +886-4-23594075
- +886-4-23594873
- No. 12, Jingke Rd., Nantun Dist., Taichung City 408219, Taiwan
